GLASS RECTANGULAR DEVELOPING CHAMBER FOR 10X20CM PLATES (WITH LID) A70-21
제조사
Miles Scientific
브랜드
Miles Scientific [브랜드바로가기]
원산지
미국

상품상세보기

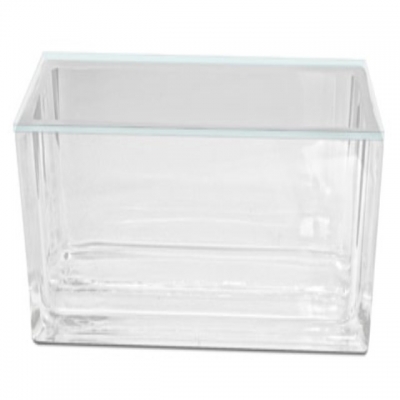

GLASS RECTANGULAR DEVELOPING CHAMBER FOR 10X20CM PLATES (WITH LID) A70-21

A cut-down version of the A70-22 glass developing chamber is our A70-21; perfect for use with 10x20 cm or 10x10 cm TLC plates. This chamber can be used to develop individual TLC plates or even multiple plates simultaneously but leaning them against both walls. With the use of a TLC plate rack (A80-27) this chamber can accommodate the concurrent development of up to 6 plates.

 Inside DimensionsOutside Dimensions
Height4 3/8" (11.1 cm)4 3/4" (12.1 cm)
Width10 3/4" (27.3 cm)11 5/8" (29.5 cm)
Depth3 1/8" (7.9 cm)3 7/8" (9.7 cm)

All Miles Scientific's glass TLC developing chambers provide optimum developing conditions for a variety of TLC plate sizes and shapes. Precision ground surfaces provide tight seals between tanks and glass covers and permit complete saturation of chambers with solvent vapor for uniform development of chromatograms.

Optimal for use with 10x20 cm plates. Can also be used with smaller plates with consideration for the reach necessary.

NoteEach chamber is shipped with the appropriate lid.
